river#
The river object models open channel flow of water in a river streach or channel between reservoirs
Input connections |
|
Output connections |
|
License |
SHOP_OPEN |
Release version |
14.3.1.0 |
Introduction#
In its basic form, the river object simply moves water between two other objects in SHOP, such as between two reservoirs. However, it is designed to model two main situations well: long river stretches with complex time delay, and accurate flow functions in shorter channels and over weir crests. Time delay and flow functions have existed in SHOP before the river object, mainly on the gate object, but these formulations have been expanded and improved upon in the river implementation. In addition, the river object can be connected in new ways compared to the gate objects, which allows for a better physical representation of the system.
The basic river functionality is open to all users, which means it will be possible to convert an existing gate object to a river object without buying a new license. The SHOP_RIVER license unlocks all river functionality, which includes the possibility of connecting rivers in new ways and all river attributes that have no equivalent gate attribute. Please consult the interactive attribute documentation table further down in this document for the license requirements of specific attributes, but note that some special cases are mentioned explicitly in the description below.
1 Necessary input and basic behavior#
The only required input for the river object is the double attribute upstream_elevation This attribute is not always used, but is required to ensure topological consistency. The attribute value is the upstream elevation of the river bottom in masl. A similar downstream_elevation attribute is also found on the river object, but it is currently not used. Figure 1.1 shows a basic river topology.
|
|---|

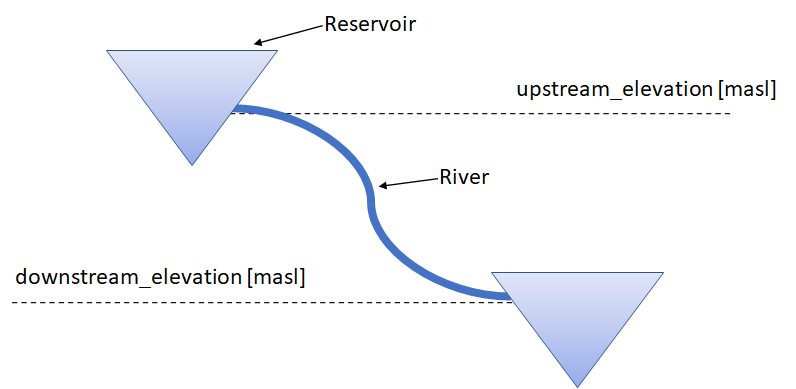

Figure 1.1: A simple river topology where the river connects two reservoirs. The dashed #lines mark the elevation of the upstream and downstream river heights. |
If no other input is given for the river, SHOP can freely optimize the amount of water that flows in the river. The resulting optimized river flow is saved to the flow output TXY attribute, which is identical to the upstream_flow attribute. In the simple case shown in Figure 1, water from the upper reservoir can be transported instantaneously to the lower reservoir, even if the upstream reservoir elevation is below the upstream_elevation of the river. There are no maximum flow limitations imposed by default, and there is no explicit cost of water flowing in the river[1]. It is possible to impose such restrictions with the min_flow, max_flow, and flow_cost TXY attributes, but they must be specified by the user for each river object. The flow_schedule TXY attribute can be used to force the amount of water that must flow into the river, and the cost for breaking the schedule can be specified with the flow_schedule_penalty_cost TXY attribute. Ramping constraints on the upstream river flow in either direction can also be added with the ramping_up and ramping_down TXY attributes (requires either the SHOP_RIVER or GATE_RAMPING license).
It is possible to add natural inflow to the river object with the inflow TXY attribute. This is water that enters the top of the river at the height of upstream_elevation. Rivers can be connected to other river objects, which makes it possible to model inflow entering the river at different points by splitting up the river into segments. This can be useful when there is time delay in the river. Figure 1.2 shows an example of this type of topology.
|
|---|

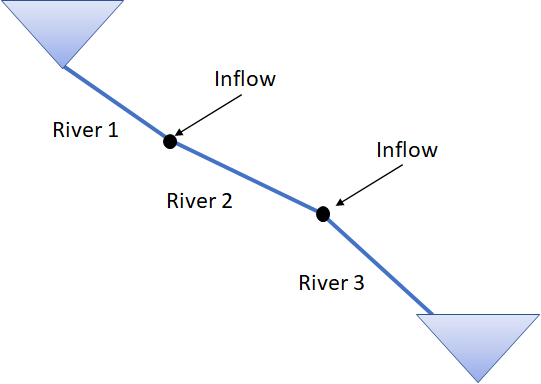

Figure 1.2: The river between the upper and lower reservoir is split into three parts, where natural inflow from creeks enter at the top of River 2 and 3. |
Rivers can have multiple input sources, but only a single output. A complete list of valid input and output objects is found at the beginning of this documentation page[2]. Reservoirs, plants, and other rivers are the most usual river input objects. Figure 1.3 shows a modified version of Figure 2 with a power plant and another river as input to River 2 and River 3. Note that a river does not require any input object, like River 4 in Figure 1.3, but this means that the inflow will be the only water arriving downstream. This can still be useful if there is significant time delay in the river and inflow is measured somewhere upstream. The river object can also be left without any downstream connection, this means that the water flowing in the river is lost out of the system. If a single reservoir has multiple output rivers without any other output connections, the int attribute main_river can be set to 1 for the river that represents the main water way out of the reservoir. This attribute is only needed for energy conversion calculations, such as converting the energy_value_input of a reservoir to a water value. The first river connected to the reservoir will be used if none of the rivers have set the main_river attribute to 1.
|
|---|

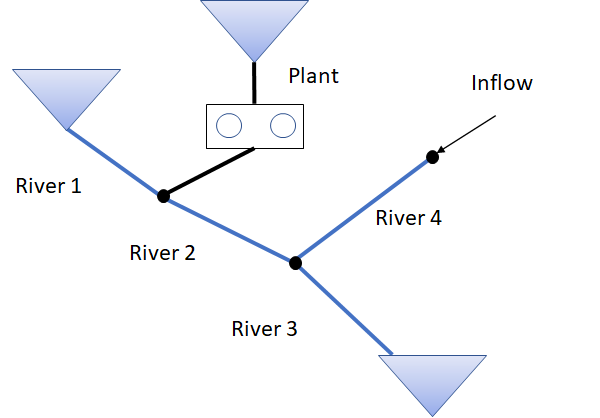

Figure 1.3: A river system with different input objects at different locations. |
2. Modelling rivers with time delay#
Long rivers may introduce a considerable delay in the time it takes for water to flow from the start to the end of the river. There are two different ways of modelling the time delay in river objects in SHOP: either a constant time delay or a predefined wave form can be specified. The examples shown are not based on any realistic data, and are exaggerated to show the model behavior in edge cases.
2.1 Constant time delay#
A constant time delay is specified on the double attribute time_delay_const on the river object. The time delay decides how long it takes the water flowing into the top of the river to reach the bottom of the river. Consider a SHOP optimization with hourly time resolution and a river with a constant time delay of 3.2 hours. Figure 2.1 shows how an upstream river flow of 10 m3/s will be distributed among the time intervals when it reaches the bottom of the river.
|
|---|

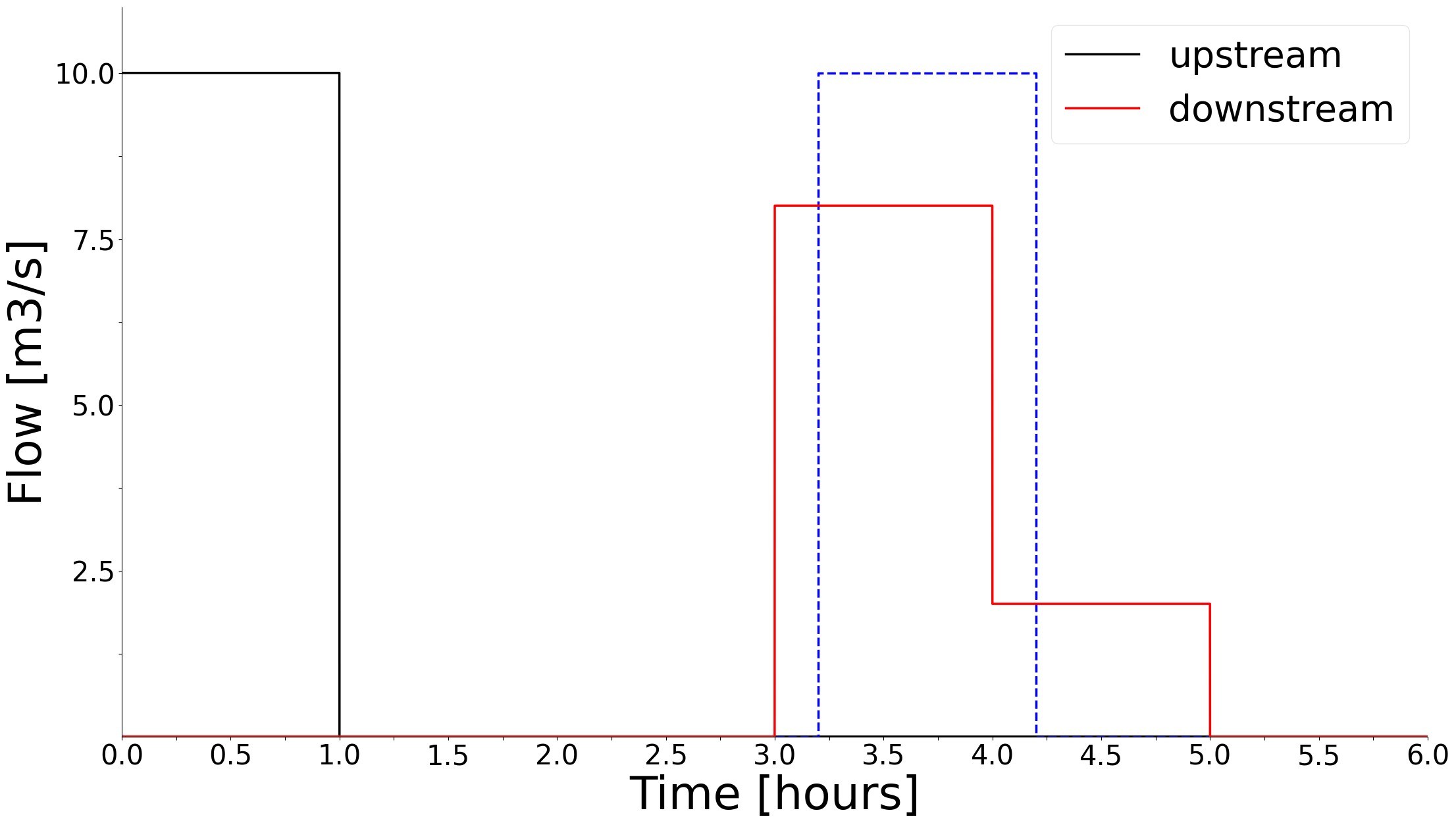

Figure 2.1: The black line is the flow in the top of the river in the first hourly time interval, while the red line shows the delayed downstream flow results from SHOP. The red line is an hourly discretization of the true downstream flow, shown as the blue dashed line. |
Since the discharge must be constant within a time interval in a linear optimization model like SHOP, 10 m3/s will flow into the river from the beginning to the end of the first time interval (black line). Assuming no dispersion of the water as it travels downstream, 10 m3/s of water will flow out of the river from t = 3.2 h to t = 4.2 h (dashed blue line). This affects both the fourth and fifth hourly time intervals in SHOP, where 80% of the total upstream volume discharged in the first time interval arrives downstream in the fourth time interval. The resulting downstream flow reported by SHOP (red line) is saved to the attribute downstream_flow output TXY on the river object. In the case shown in Figure 2.1, a constant 8 m3/s will flow out of the river between hour 3 and 4 and 2 m3/s will out flow between hour 4 and 5. This distortion of the actual downstream flow is due to the length of the time intervals compared to the fractional time delay, and can be viewed as a sampling frequency problem. Figure 2.2 shows the same situation where the time resolution is 15 minutes instead of 1 hour, which improves the situation. The issue will completely disappear if the time_delay_const is an integer number of time intervals.
|
|---|

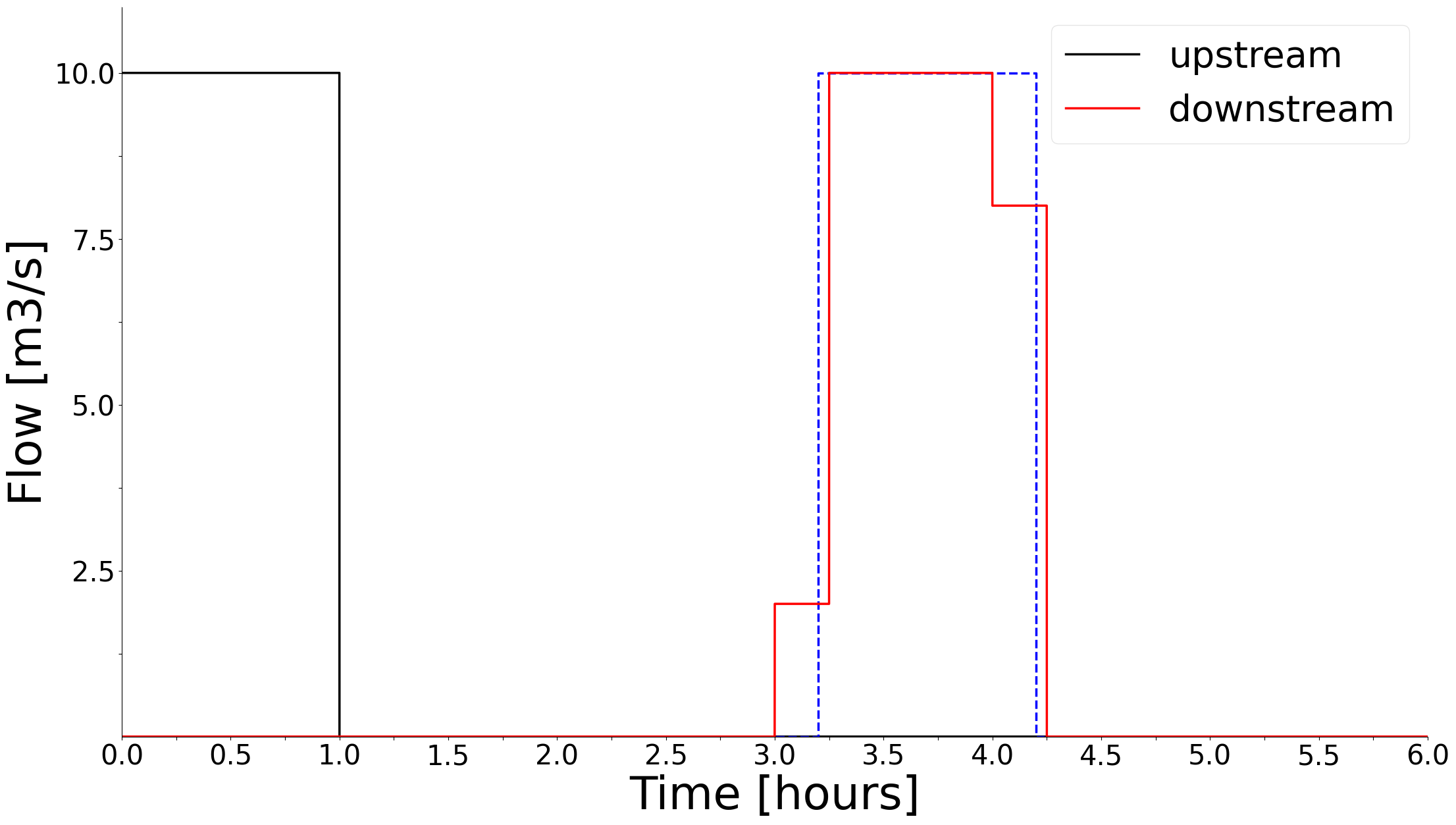

Figure 2.2: The same as in Figure 2.1, but the time resolution is 15 min instead of 1 hour. |
The underlying assumption for distributing the delayed water between time intervals is that the total volume entering and leaving the river must be preserved. This ensures that the mass balance of the hydropower system is conserved, and using varying time interval sizes within the optimization horizon can be easily handled.
2.2 Time delay with a wave shape curve#
In the case of a constant time delay in the previous section, the water flowing down the river is assumed to not disperse before reaching the end of the river. A wave of water will naturally disperse based on a number of factors, such as the friction and shape of the river. It is possible to mimic the behavior in SHOP by specifying a wave shape curve in the form of the XY array attribute time_delay_curve. The time_delay_curve is an array of XY functions where each XY can be given a reference flow in m3/s. This makes it possible to have a time delay which is dependent on the flow in the river. The x-vector must be identical for all of the XY tables in the time_delay_curve, and the resulting wave shape is the linear interpolation of the y-values of the two XY curves closest to the flow in the previous SHOP iteration.
The following example assumes that only a single XY curve is given in, which means that the same wave shape is applied independent of the flow in the river. The time_delay_curve is given in the table below:
X (hours) |
Y (volume fraction) |
|---|---|
2.5 |
0.25 |
3.0 |
0.50 |
3.5 |
0.25 |
4.0 |
0.0 |
Consider the upstream flow in a short time period of length
|
|---|

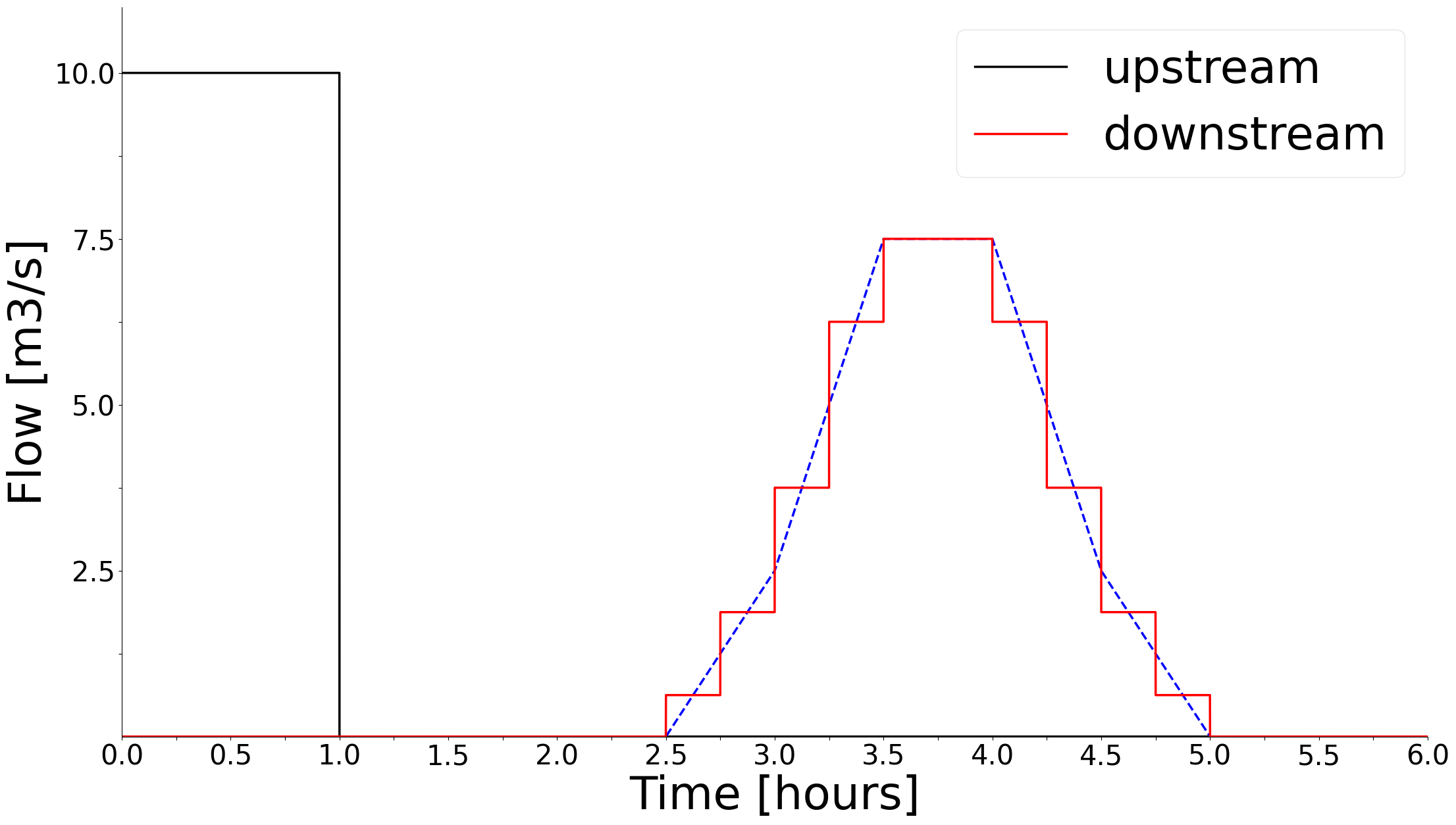

Figure 2.3: The black line is the upstream flow in the river, while the red line shows the delayed and dispersed downstream flow results from SHOP when using a 15 min time resolution. The blue dashed line is the true continuous time delayed water wave. |
The total downstream flow is found by summing up the contribution of all the vanishingly small time intervals of length dt within a time step in the optimization. The upstream flow at the very beginning of the optimization, say from
|
|---|

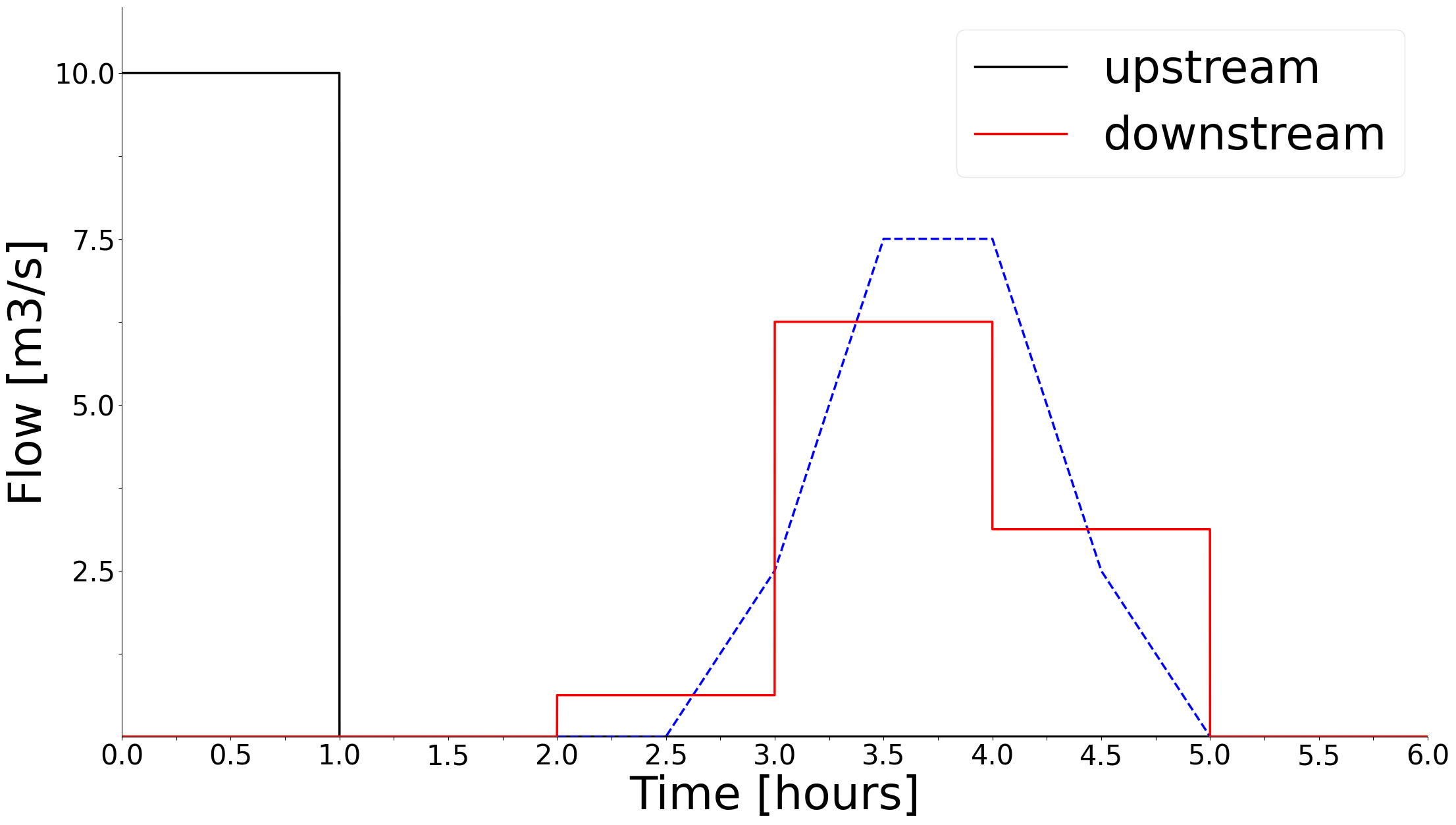

Figure 2.4: The black line is the upstream flow in the river, while the red line shows the delayed and dispersed downstream flow results from SHOP when using a hourly time resolution. The blue dashed line is the true continuous time delayed water wave. |
The true continuous convolution curve in Figures 2.3 and 2.4 are identical, as it only depends on the length of the upstream wave and the time_delay_curve. This means that the resulting downstream flow optimized by SHOP will converge towards the blue dashed curve as the time resolution in the optimization is increased.
2.3 Historical upstream river flow#
There will initially be no downstream flow coming out of the river in SHOP if there is a time delay larger than the size of the time intervals in SHOP. To remedy this, the upstream flow that occurred in the hours before optimization can be added to the river as the input TXY past_upstream_flow where all time values should be before the strat time of the optimization. The water defined in the past_upstream_flow will be distributed to the downstream flow of the river according to the time delay defined on the river object (constant or wave shape curve). The final value in the TXY is assumed to last until the start of the current optimization period, and any values defined for times within the optimization horizon are ignored. Only delayed water that enters into the optimization horizon is considered. Note that this attribute was an XY attribute before SHOP version 15.3.1.0 instead of a TXY.
If several river objects are coupled in series, the past_upstream_flow of the top rivers will automatically be transferred down the entire river chain considering the time delay in each river object (if any). The calculated past upstream flow for each river in the chain is saved to the output XY attribute distributed_past_upstream_flow, where the X-values represent the time stamps as negative numbers. Figure 2.5 shows a river system where past_upstream_flow is defined for the two top river objects and distributed_past_upstream_flow is calculated for the downstream river object.
|
|---|

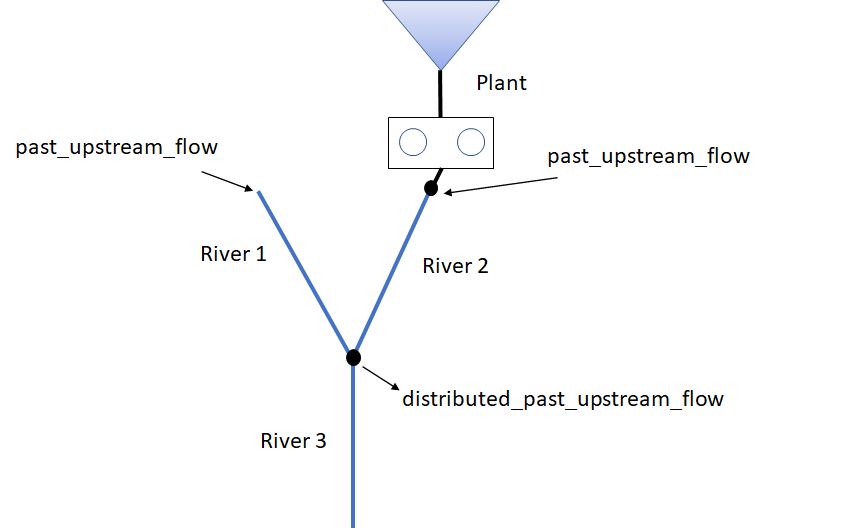

Figure 2.5: A system where two rivers merge into a single river. past_upstream_flow is defined for both River 1 and River 2, while distribute_past_upstream_flow is calculated for River 3 based on the time delay of the upstream rivers. |
The resulting initial flow out of the bottom of each river is saved in the output TXY attribute initial_downstream_flow on river object. This is simply the (distributed_)past_upstream_flow of the river transported downstream according to the time delay in the river and ignoring any water that arrives outside the optimization period.
2.4 Value of delayed water at the end of the optimization#
If there is time delay in a river, some of the water will likely be in transit by the end of the optimization period. This water will eventually end up in a downstream reservoir (or the sea), and it should be evaluated according to the downstream water value. The valuation of delayed water is discussed in in this chapter of the “Water value descriptions” tutorial.
3 River flow according to reservoir levels#
Instead of allowing SHOP to freely optimize the flow in the river, it is possible to specify different types of flow functions for the river object. The different flow functions determine the flow in the river based on the reservoir level in the upper (and sometimes lower) reservoir. The flow functions described below are therefore only used if the river object is connected directly to the upstream reservoir.
3.1 Flow based on the upstream reservoir level#
3.1.1 Flow based on a flow table#
The most direct way to define a river flow based on the upstream reservoir water level is to define the XY array attribute up_head_flow_curve on the river object. The up_head_flow_curve describes the flow out of the reservoir (y-values in m3/s) as the reservoir head changes (x-values in masl). Note that this attribute is an array of XY tables, where the reference values are the gate positions for each table (see Section 3.1.3 for gates). If there is no gate, a single XY table like the table below can be supplied:
X (masl) |
Y (flow) |
|---|---|
120.0 |
0 |
120.5 |
10 |
121.0 |
100 |
Note that the first x value should correspond to the upstream_elevation of the river, and this should result in zero flow. The flow into the river in time step t will be decided by the average reservoir head over the time interval, calculated as the average of the head at the start and end of the time interval. The reservoir head in the SHOP optimization is based on a linearization of the reservoir vol_head curve and the volume variable. The river flow will in turn be a linearization of the up_head_flow_curve around the reservoir head values from the previous SHOP iteration. Since the linearization is not always 100% accurate, the output TXY attribute physical_flow saves the post-calculated flow based on the final reservoir head values.
The up_head_flow_curve will only be used if the river object is directly connected to a reservoir upstream, otherwise it is ignored.
If the reservoir level is below the upstream_elevation of the river, the flow will be zero. This means that the flow in the river follows a non-convex behaviour, and the use of binary variables are needed to ensure that the flow is zero below the upstream_elevation threshold. Activating binary variables for the river flow can be done by setting the mip_flag TXY attribute to 1. It is recommended to activate the mip_flag for a river if considerable deviations are observed. If the mip_flag is not active, a linear set of constraints will still be added to dissuade the optimization from letting water flow in the river for reservoir levels below the upstream_elevation. Note that it is never necessary to use binary variables if the upstream_elevation of the river corresponds with the LRL of the reservoir.
A river with an up_head_flow_curve can act as a spill gate if the river’s upstream_elevation is the same as the reservoir HRL. The flow_descr attribute on the reservoir can then be removed and instead added as an up_head_flow_curve on the river.
3.1.2 Flow based on weir geometry#
Instead of supplying a flow table for the river, it is possible to let the flow out of the upstream reservoir be determined by the geometry of the river opening. The XY attribute width_depth_curve must be defined to use this functionality, which describes the cross section of the river opening. The following width_depth_curve:
X (m) |
Y (m) |
|---|---|
0 |
0 |
W1 |
D1 |
W2 |
D2 |
W3 |
D3 |
is visualized in Figure 3.1.
|
|---|

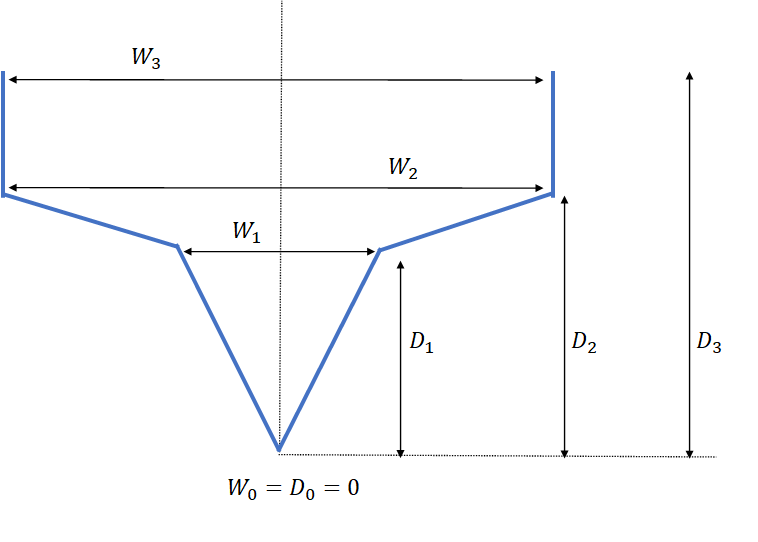

Figure 3.1: A cross section of a river channel described by piecewise linear segments and symmetry around the center. |
The x values represent the width of the opening at the depth specified in the y values. Note that the first y value must be zero, while the first x value can be non-zero (flat bottom). Note that the depth values are measured relative to the upstream_elevation attribute, where a depth of 1 meter in the river opening is 1 meter above the upstream_elevation (masl).
The resulting flow out of the reservoir and into the river is calculated based on the assumption of critical steady state flow. Critical flow occurs when the specific energy is minimum for a given discharge[3]. Examples of critical flow is water passing over a broad-crested weir, which is the underlying assumption in the SHOP implementation. The flow is given as:
where
The comments regarding the mip_flag attribute in Section 3.1.1 are also valid for rivers with flow according to the width_depth_curve.
3.1.3 Gates on river objects#
When the flow in the river is decided based on either the up_head_flow_curve from Section 3.1.1 or the width_depth_curve and critical flow description in Section 3.1.2, it is possible to model a movable gate that can change the flow in the river. To add a gate to the top of the river, the XY attribute gate_opening_curve must be defined. This curve converts between a gate “setting” (x value, number between 0 and 1) and the corresponding gate height (y value, meters):
X |
Y (meter) |
|---|---|
0.0 |
0 |
0.5 |
10 |
1.0 |
12 |
The gate_opening_curve above shows that the gate is 0 meters above the upstream_elevation of the river for gate setting 0.0. The height of the gate increases from 0 to 10 meters above upstream_elevation as the gate setting is increased to 0.5. For the maximal gate setting of 1.0, the gate is 12 meters above upstream_elevation. Note that the gate is assumed to be extended from the bottom and upwards, and is therefore not retracted from the bottom and upwards. Gates that are retracted from the bottom and upwards should be modelled as tunnel objects in SHOP. The gate height can be optimized freely in SHOP unless the TXY attribute gate_opening_schedule is defined. The gate_opening_schedule is a schedule for the gate setting (x value) in the gate_opening_curve. If the gate is to be optimized freely, an adjustment cost can be added by specifying the gate_adjustment_cost TXY attribute. The gate_adjustment_cost is a cost for changing the gate position from one time step to the next. Ramping constraints for the gate can also be added with the gate_ramping TXY attribute, and the gate_ramping_penalty_cost TXY can be used to adjust the cost for breaking the ramping constraints. The double attribute initial_gate_opening can be used to define the gate setting at the beginning of the optimization period when either gate_adjustment_cost or gate_ramping is present on a river. It is recommended to use a gate_adjustment_cost and/or gate ramping constraints when the gate can be optimized, this generally helps to stabilize the optimzation results from iteration to iteration. The gate_height output TXY attribute holds the resulting gate height in masl after optimization.
The up_head_flow_curve is an XY array attribute, where the reference of each XY table is the gate position. If a width_depth_curve is used to describe the river flow, the equation in Section 3.1.2 is modified to
where
3.2 Flow based on upstream and downstream reservoir levels#
The flow in a river object is usually one-directional: from the upstream object to the downstream object. However, rivers can also be used to model channels connecting two reservoirs where the flow can be in either direction. The river must be directly connected to a reservoir upstream and another reservoir downstream to activate this behaviour. In addition, one of the attributes XY array attributes delta_head_ref_up_flow_curve and delta_head_ref_down_flow_curve must be specified for the river. Each XY table in the delta_head_ref_up_flow_curve attribute is referred to a specific upstream reservoir level, while the downstream reservoir level is used as references for the delta_head_ref_down_flow_curve. The x values represent the level difference, upstream level - downstream level, while the y values give the resulting flow. The flow can be both positive and negative, where positive flow is from the reservoir connected upstream towards the reservoir connected downstream. The point (0,0) should be present in all of the XY tables to enforce that the flow is zero when there is no difference in reservoir level. The following XY table (referred to some upstream reservoir level in masl) can be one of the XYs in the delta_head_ref_up_flow_curve:
X (meter) |
Y (flow) |
|---|---|
-3.0 |
-100 |
-2.0 |
-10 |
0.0 |
0 |
2.0 |
10 |
3.0 |
100 |
The table is not required to be symmetric (with a sign change) as in the example above.
Examples#
Attributes#
length#
Length of the river segment (xUnit: METER, yUnit: METER)
upstream_elevation#
The elevation of the river floor upstream (xUnit: METER, yUnit: METER)
downstream_elevation#
The elevation of the river floor downstream (xUnit: METER, yUnit: METER)
time_delay_const#
The time delay of the water flowing down the river (xUnit: HOUR, yUnit: HOUR)
delayed_water_energy_value#
Specifies a constant local energy value used to evaluate the water in transit at the end of the optimization horizon. The value is converted to EUR/Mm3 and then added to the global water value of the downstream reservoir. (xUnit: NOK/MWH, yUnit: NOK/MWH)
delayed_water_value#
Specifies a constant global water value used to evaluate the water in transit at the end of the optimization horizon. The water value of the downstream reservoir will be used if this attribute is not specified. (xUnit: NOK/MM3, yUnit: NOK/MM3)
initial_gate_opening#
Specifies the initial opening position of the gate in the river before optimization, which is used when applying gate_adjustment_cost and gate_ramping constraints for the first time step. These constraints will not be applied for t=0 if the initial gate opening is not specified (-1) (xUnit: NO_UNIT, yUnit: NO_UNIT)
linear_ref_flow#
Specificed the flow rate where the head-flow rate should be linearized from. Can be used in combination with submerged weir where the flow is based on watted area. Will only be used if activated by corresponding flag. (xUnit: M3/S, yUnit: M3/S)
implicit_factor#
Weighting between reservoir level in the beginning and end of time step for numerical integration. 0 - explicit Euler, 0.5 trapezoidal method, 1 - implicity Euler. Increase value for imporved numerical stability, while 0.5 will typically give highest precision. (xUnit: NO_UNIT, yUnit: NO_UNIT)
main_river#
Specifies that this river should be considered the main waterway downstream a reservoir, and is only needed if a reservoir has no directly connected downstream power plant and has multiple output rivers. The first connected river is assumed to be the main river if this value has not been set on any of the output rivers. (xUnit: NO_UNIT, yUnit: NO_UNIT)
submerged_weir#
Specifies if the weir should allow two way flow and reduce flow rate when downstream head is above weir height. (xUnit: NO_UNIT, yUnit: NO_UNIT)
linear_submerged_weir_flow#
Activated weir flow linearized through the point given by linear_ref_flow and zero. Typically used for two-way flow functions with small reservoirs where convergence can be challenging. (xUnit: NO_UNIT, yUnit: NO_UNIT)
width_depth_curve#
The curve describing the shape of the river cross section (xUnit: METER, yUnit: METER)
flow_cost_curve#
Describes a piece-wise constant cost curve for the flow in each time step for the river. This convex curve is preferred over the standard flow_cost TXY attribute if both are defined for the river object (xUnit: M3/S, yUnit: NOK/H/M3/S)
peak_flow_cost_curve#
Describes the piece-wise constant cost curve for the highest achieved flow rate in the river over the optimization horizon (xUnit: M3/S, yUnit: NOK/M3/S)
time_delay_curve#
Function for modelling wave-shaped time delay. The X-values represent the time since discharge into the top of the river, and the Y-values represents the fraction of the upstream water arriving at the bottom of the river at that time. Separate curves can be given in for different reference flows, in this case the time delay will be interpolated between the curves based on the flow in the past SHOP iteration. (xUnit: HOUR, yUnit: NO_UNIT)
past_upstream_flow#
Represents the upstream flow in the river before the start of the optimization period, which is considered for rivers with time delay. Any values given for times inside the optimization horizon are ignored. The datatype of this attribute changed from xy to txy in version 15.3.1.0 (xUnit: NO_UNIT, yUnit: M3/S)
up_head_flow_curve#
Function determining the relationship between water level in the reservoir directly above the river and the flow in the river. The XY flow functions can be given in for multiple gate settings where the gate opening position is the reference value of the XY table (xUnit: METER, yUnit: M3/S)
gate_opening_curve#
Function determining the relationship between the user-defined position of the gate (X-value) and the corresponding height in meters above the river bottom (Y-value) (xUnit: NO_UNIT, yUnit: METER)
delta_head_ref_up_flow_curve#
Set of functions determining the relationship between the difference in water level between the reservoir directly above and below the river (X-value) and the flow in the river (Y-value). The reference for each function is the water level in the upper reservoir. (xUnit: METER, yUnit: M3/S)
delta_head_ref_down_flow_curve#
Set of functions determining the relationship between the difference in water level between the reservoir directly above and below the river (X-value) and the flow in the river (Y-value). The reference for each function is the water level in the lower reservoir. (xUnit: METER, yUnit: M3/S)
inflow#
The upstream natural inflow to the river (xUnit: M3/S, yUnit: M3/S)
min_flow#
Defines a minimum flow constraint for the river (xUnit: M3/S, yUnit: M3/S)
max_flow#
Defines a maximum flow constraint for the river (xUnit: M3/S, yUnit: M3/S)
min_flow_penalty_cost#
The penalty cost for breaking the min_flow constraint. Overrides the default river_flow_penalty_cost defined on global_settings. (xUnit: NOK/H/M3/S, yUnit: NOK/H/M3/S)
max_flow_penalty_cost#
The penalty cost for breaking the max_flow constraint. Overrides the default river_flow_penalty_cost defined on global_settings. (xUnit: NOK/H/M3/S, yUnit: NOK/H/M3/S)
ramping_up#
Defines a maximum upward flow ramping constraint for the river (xUnit: M3SEC_HOUR, yUnit: M3SEC_HOUR)
ramping_down#
Defines a maximum downward flow ramping constraint for the river (xUnit: M3SEC_HOUR, yUnit: M3SEC_HOUR)
ramping_up_penalty_cost#
The penalty cost for breaking the ramping_up constraint. Overrides the default gate_ramp_penalty_cost defined on global_settings. (xUnit: NOK/M3/S, yUnit: NOK/M3/S)
ramping_down_penalty_cost#
The penalty cost for breaking the ramping_down constraint. Overrides the default gate_ramp_penalty_cost defined on global_settings. (xUnit: NOK/M3/S, yUnit: NOK/M3/S)
cost_curve_scaling#
The values in this time series will be multiplied with the flow_cost_curve values. This makes it possible to vary the convex flow_cost_curve over the optimization horizon. (xUnit: NO_UNIT, yUnit: NO_UNIT)
flow_schedule#
Schedule for flow through the river. If the river has time delay, it is referenced to the start of the river. (xUnit: NO_UNIT, yUnit: M3/S)
flow_schedule_penalty_cost#
Penalty cost for breaking the flow_schedule for the river. The default penalty cost for all rivers can be set with the river_flow_schedule_penalty_cost attribute on global_settings (xUnit: NO_UNIT, yUnit: NOK/H/M3/S)
gate_opening_schedule#
Schedule for opening of the gate in the river. The value given here is interpreted as the X-value of the gate_opening_curve. (xUnit: NO_UNIT, yUnit: NO_UNIT)
flow_block_merge_tolerance#
Maximum difference in flow between two timesteps that results in a merged result for these timesteps in the next iteration. This requires merging to be activated in the command file by set merge /on. (xUnit: NO_UNIT, yUnit: M3/S)
gate_ramping#
Maximal allowed change in the gate height per hour in both upward and downward direction. (xUnit: NO_UNIT, yUnit: METER/HOUR)
gate_ramping_penalty_cost#
The penalty cost for breaking the gate ramping constraints in either upward or downward direction. (xUnit: NO_UNIT, yUnit: NOK/METER_HOUR)
gate_adjustment_cost#
The cost for changeing the gate height between two time steps in either upward or downward direction. (xUnit: NO_UNIT, yUnit: NOK/METER)
flow_cost#
A linear cost for the flow of water in the river. If a covex flow_cost_curve is defined on the gate, it will be preferred over the flow_cost (xUnit: NO_UNIT, yUnit: NOK/H/M3/S)
mip_flag#
A flag series used to turn on (1) and off (0) the use of binary variables to ensure that the river flow is zero when the reservoir head is below the gate or bottom of the river bed. Non-physical flow may occur if the mip_flag is turned off (xUnit: NO_UNIT, yUnit: NO_UNIT)
flow#
The flow in the river, referenced at the upstream enpoint (xUnit: M3/S, yUnit: M3/S)
upstream_flow#
The flow in the river at the upstream enpoint (xUnit: M3/S, yUnit: M3/S)
downstream_flow#
The flow in the river at the downstream enpoint (xUnit: M3/S, yUnit: M3/S)
gate_height#
The height of the gate in MASL (xUnit: METER, yUnit: METER)
min_flow_penalty#
The incurred penalty for breaking the min_flow constraint (xUnit: NOK, yUnit: NOK)
max_flow_penalty#
The incurred penalty for breaking the max_flow constraint (xUnit: NOK, yUnit: NOK)
ramping_up_penalty#
The incurred penalty for breaking the ramping_up constraint (xUnit: NOK, yUnit: NOK)
ramping_down_penalty#
The incurred penalty for breaking the ramping_down constraint (xUnit: NOK, yUnit: NOK)
flow_penalty#
The penalty incurred based on the flow_cost_curve and the flow rate in the river over the optimization horizon (xUnit: NO_UNIT, yUnit: NOK)
peak_flow_penalty#
The penalty incurred based on the peak_flow_cost_curve and the highest achieved flow rate in the river over the optimization horizon (xUnit: NO_UNIT, yUnit: NOK)
gate_ramping_penalty#
The penalty incurred for breaking the gate_ramping constraints according to the gate_ramping_penalty_cost (xUnit: NO_UNIT, yUnit: NOK)
gate_adjustment_penalty#
The incurred cost for changeing the gate height between time steps according to the gate_adjustment_cost (xUnit: NO_UNIT, yUnit: NOK)
flow_schedule_penalty#
The incurred cost for breaking the flow_schedule constraints on the river (xUnit: NO_UNIT, yUnit: NOK)
physical_flow#
The physical flow into the top of the river based on the post-calculated reservoir head values. If the river flow is not dependent on the upstream reservoir head, the physical_flow will be identical to the regular flow attribute. (xUnit: NO_UNIT, yUnit: M3/S)
initial_downstream_flow#
The calculated initial flow that will flow out from the end of the river. This is calulated based on the time delay in the river and the past_upstream_flow and distributed_past_upstream_flow attribute. (xUnit: NO_UNIT, yUnit: M3/S)
distributed_past_upstream_flow#
The past upstream flow of upstream river objects that have been distributed down to this river. Represented as an XY table where the x-values are the time steps in negative hours relative to the start of the optimization (xUnit: HOUR, yUnit: M3/S)
sim_flow#
The simulated upstream river flow after a SHOP simulation is performed (xUnit: NO_UNIT, yUnit: M3/S)
sim_downstream_flow#
The simulated river flow that exits the bottom of the river after a SHOP simulation is performed (xUnit: NO_UNIT, yUnit: M3/S)
delayed_water_vol#
The volume of the downstream river flow that arrives after the end of the optimization horizon (xUnit: MM3, yUnit: MM3)
sim_delayed_water_vol#
The simulated volume of the downstream river flow that arrives after the end of the simulation horizon (xUnit: MM3, yUnit: MM3)
